Bitumen content — the percentage of bitumen binder by mass of total asphalt mix — is the single most critical variable in asphalt mix design. Too little bitumen and the mix becomes brittle, prone to cracking and ravelling. Too much and rutting and bleeding become problems. This guide explains how to calculate bitumen percentage accurately, how optimum bitumen content (OBC) is determined, and how to interpret extraction test results for quality control on site.
How to Calculate Bitumen Percentage

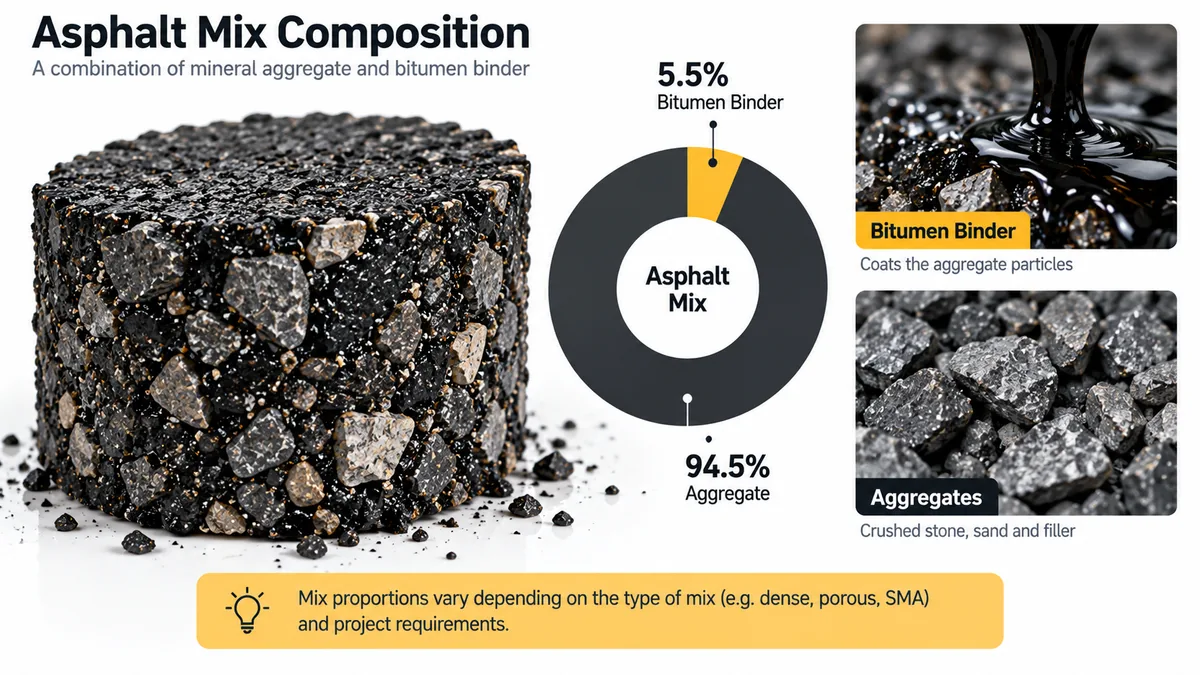

Bitumen content is expressed as a percentage of the total mix mass (binder + aggregate + filler). The basic formula is:
Example: A Marshall specimen weighs 1,200 g total and the extracted binder mass is 66 g:
Bitumen Content = (66 ÷ 1,200) × 100 = 5.5%
Note: some specifications express bitumen content as a percentage of aggregate mass (Pb/a), not total mix mass. Always confirm which basis your specification uses. The conversion is: Pb(total) = Pb(aggregate) ÷ (1 + Pb(aggregate)/100)
What is Optimum Bitumen Content (OBC)?
Optimum bitumen content is the binder percentage that simultaneously satisfies all specified volumetric and performance requirements — typically maximum stability, acceptable flow, target air void content (usually 4% for Marshall design), adequate voids in mineral aggregate (VMA), and adequate voids filled with bitumen (VFB).
OBC is not a single calculated value — it is determined graphically from a series of mix design specimens prepared at different binder contents (typically 4.0%, 4.5%, 5.0%, 5.5%, 6.0%, and 6.5%) and tested to measure stability, flow, bulk density, air voids, VMA, and VFB.
Marshall Mix Design Method
The Marshall method (ASTM D6927 / AS 2891.5) is the most widely used mix design procedure for dense-graded HMA. The procedure:
- Prepare 3 replicate specimens at each of 5–6 binder content trial levels
- Compact each specimen with 75 blows per face (heavy traffic) or 50 blows (medium traffic)
- Test specimens for Marshall stability and flow at 60°C
- Calculate bulk density, air voids (Va), VMA, and VFB for each binder content
- Plot each property against binder content on a graph
- Select OBC as the binder content at 4% air voids, then verify all other criteria are met
| Property | Typical Specification (Heavy Traffic) |
|---|---|
| Marshall Stability | > 8 kN |
| Marshall Flow | 2–4 mm |
| Air Voids (Va) | 3–5% |
| Voids in Mineral Aggregate (VMA) | > 13% |
| Voids Filled with Bitumen (VFB) | 65–75% |
Bitumen Extraction Test Calculation
Extraction tests are used to determine the actual binder content of either a designed mix sample or a core drilled from finished pavement, for quality control or forensic purposes. The centrifuge or Rotarex method (ASTM D2172 / AS 2891.3) dissolves the bitumen with a solvent, separates the aggregate, and weighs both to back-calculate bitumen content.
Example: A 1,000 g sample yields 935 g of recovered aggregate after extraction and 5 g of dissolved filler correction factor:
Bitumen = [(1,000 − 935 − 5) ÷ 1,000] × 100 = 6.0%
Extraction test results should match the plant-designed bitumen content within ±0.3% for compliant production. Use the application rate calculator to verify that delivered kg/m² on site is consistent with your target bitumen content and compacted density.
Filler-Bitumen Ratio
The filler-bitumen ratio (F/B) describes the relationship between mineral filler (material passing the 0.075 mm sieve) and bitumen binder content. It influences stiffness and durability — too high a ratio produces brittle mixes, too low reduces cohesion.
Most specifications require F/B to fall between 0.6 and 1.2. Example: if filler content is 6% and bitumen content is 5.5%, F/B = 6 ÷ 5.5 = 1.09 — within the typical range.
Typical Optimum Bitumen Content by Mix Type
| Mix Type | Typical OBC Range | Notes |
|---|---|---|
| Dense Graded AC 10 (wearing course) | 5.5–6.5% | Fine aggregate, high specific surface |
| Dense Graded AC 14 (wearing/binder) | 5.0–6.0% | Standard wearing course type |
| Dense Graded AC 20 (binder/base) | 4.5–5.5% | Coarser aggregate, lower SA |
| Stone Mastic Asphalt (SMA 10/14) | 6.0–7.5% | High binder, polymer modified |
| Open Graded Friction Course | 4.5–6.0% | Modified binder recommended |
Once OBC is confirmed from your mix design, use the material calculator to calculate bitumen and aggregate quantities for your project, or the tonnage calculator to derive total mix mass from project dimensions first.
